How A Formula 1 Internal Combustion Engine Works

The Formula 1 internal combustion engine (ICE) is a marvel of engineering, designed for high performance and efficiency within the confines of racing regulation. Each engine is a 1.6-liter V6, augmented by turbocharging to significantly increase its power output. Fitted within a hybrid power unit framework, these engines are connected to advanced energy recovery systems (ERS) which harness waste energy to boost power further or save it for strategic use during a race. The result is an engine that can produce approximately 1,000 brake horsepower (bhp).

The efficiency of these engines is also critically managed through tight fuel flow regulations, which limit the amount of fuel that can be used per hour, thus ensuring the teams push the boundaries of fuel efficiency. Alongside this, sophisticated cooling systems maintain the temperature, necessary because these engines and their accompanying ERS components operate under extremely high thermal stress. The technology evolves continuously with the evolving regulations, maintaining Formula 1’s status at the forefront of automotive engineering achievements.

Overview of Formula 1 Power Units

This section provides a concise outlook on the technological masterpiece that is the Formula 1 power unit, encompassing its definition, componentry, and critical role within a Formula 1 car.

Definition and Evolution of Power Units

The term power unit in Formula One refers to the sophisticated combination of an internal combustion engine (ICE) and auxiliary systems like the energy recovery system (ERS). Over time, these power units have evolved from simple engines to highly complex systems. The modern Formula 1 power unit is a 1.6-liter V6 turbocharged engine equipped with advanced technologies to optimize performance and efficiency.

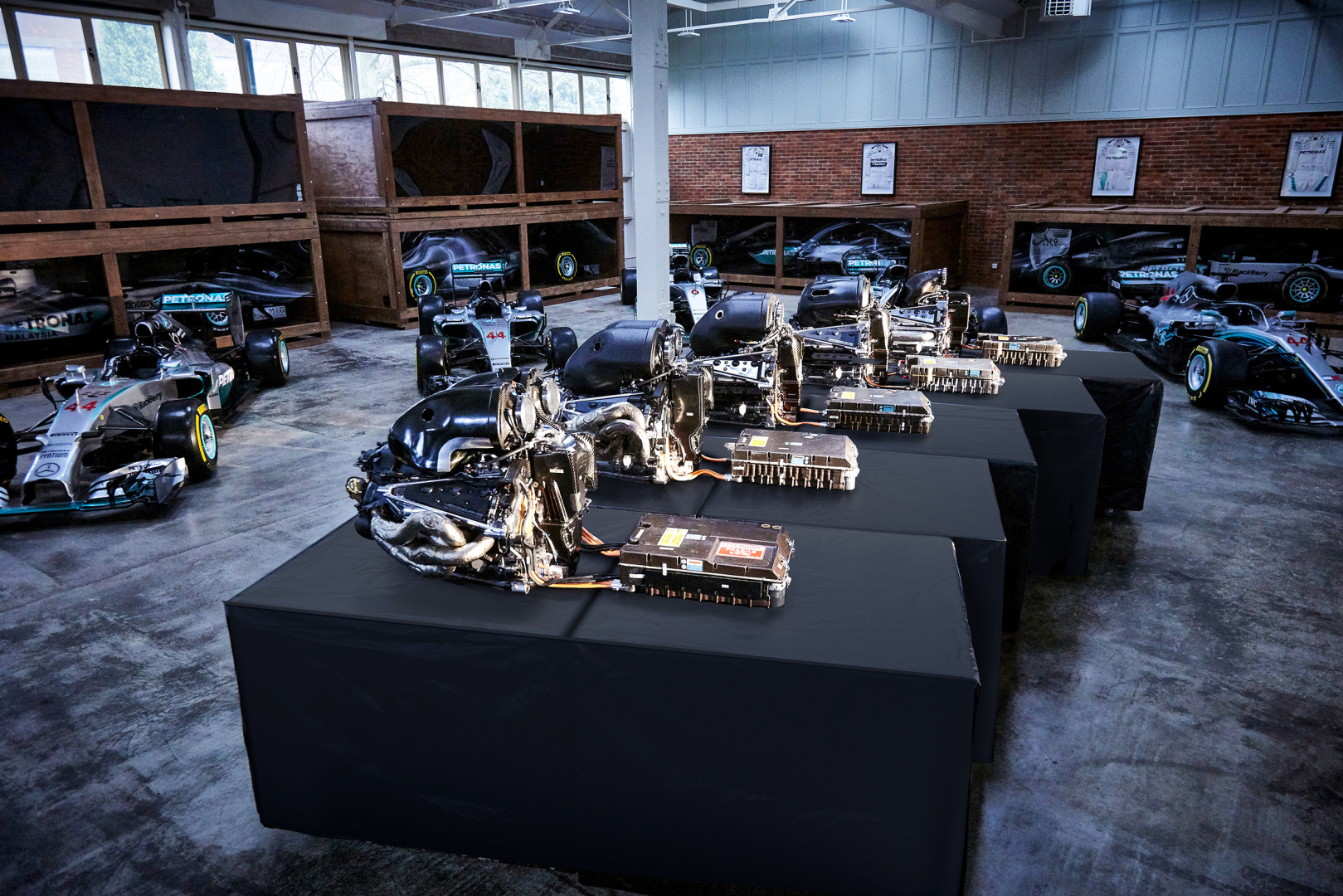

Components of a Power Unit

A Formula 1 power unit includes several key components that work in concert:

• Internal Combustion Engine (ICE): The core of the unit, a 1.6-liter V6 engine, capable of running at 15,000rpm.
• Turbocharger: Boosts engine power by using exhaust gases.
• Energy Recovery System (ERS): Comprises two motor generator units—the MGU-H (harvests energy from the turbocharger) and MGU-K (recovers kinetic energy during braking).
• Control Electronics: Manages the power unit’s various elements and their interaction.

These systems are integrated to maximize the power output, which can exceed 1000 bhp.

Role in a Formula 1 Car

The power unit is at the core of a Formula One car’s performance. It does not simply propel the car with formidable speed; it also contributes to the car’s braking and energy management. The harmonized operation of the electric motor and ICE enhances fuel efficiency and ensures compliance with Formula 1 regulations, which mandate the use of hybrid engines with a fuel flow limit.

Internal Combustion Engine (ICE) Mechanics

The internal combustion engine (ICE) within a Formula 1 car is a pinnacle of automotive engineering, transforming fuel into the speed and power that propels the world’s fastest racing cars. The mechanics of this complex component are crucial for the vehicle’s performance on the track.

Understanding the Combustion Process

The combustion process is initiated in the combustion chamber where a precise mixture of air and fuel is ignited. A Formula 1 ICE typically uses a turbocharged V6 engine, with a 1.6-liter displacement, where the following sequence takes place:

1. Intake stroke: The air intake valve opens, allowing air and a regulated quantity of fuel to enter the combustion chamber.
2. Compression stroke: The intake valve closes, and the piston compresses the mix, increasing pressure and temperature.
3. Power stroke: A high-voltage spark from the spark plug ignites the mixture, creating a controlled explosion that pushes the piston down, generating mechanical power.
4. Exhaust stroke: The exhaust valve opens to allow burnt gases to escape, making room for the next cycle.

Fuel and Air Mix Dynamics

The dynamics of the air-fuel mixture are crucial for maximum efficiency and power output. The engine’s electronic control unit (ECU) moderates the fuel delivery and air intake to achieve the stoichiometric balance — the ideal ratio for combustion. Factors such as air temperature, barometric pressure, and engine load affect this mixture. In F1, turbochargers compress incoming air to increase its density, thus enhancing combustion and power.

Exhaust Gases and Energy

Post-combustion, exhaust gases hold residual energy as they exit the engine at high velocity. In an F1 ICE system, this energy is not wasted. The gases spin a turbine connected to the turbocharger, recycling energy to compress incoming air. Additionally, an advanced component called the MGU-H (Motor Generator Unit-Heat) captures heat energy from the exhaust to improve overall efficiency and boost electrical energy available to the power unit. This intricate convergence of mechanical and thermal processes delineates the sophistication of the power units used on the race track.

Turbocharging and Boost Pressure

Turbocharging significantly elevates the power output of a Formula 1 internal combustion engine by forcing more air into the combustion chamber, which in turn allows for more fuel to be burned, generating more power. The manipulation of boost pressure and the control of turbo lag are critical for maximizing engine performance and efficiency.

How Turbocharging Works

A turbocharger is a forced induction device that increases an engine’s efficiency and power output by forcing extra air into the combustion chamber. This is achieved by a turbocharger compressing the air that flows into the engine. The core components of the turbocharger include a turbine and a compressor connected by a common shaft. The exhaust gas from the engine spins the turbine, which then spins the compressor, drawing in and compressing air. The increased air density enhances the engine’s ability to burn fuel, resulting in increased power and torque.

Management of Boost Pressure

• Control Systems: Formula 1 cars employ sophisticated control systems to manage the boost pressure. These systems adjust the turbocharger’s performance to match the driver’s demand for power.
• Wastegate: A wastegate is utilized to prevent overboosting by redirecting some exhaust flow away from the turbine, controlling the maximum boost pressure produced by the turbocharger.
• Regulations: The regulations imposed by the Fédération Internationale de l’Automobile (FIA) also influence how teams manage boost pressure, ensuring a level playing field and safety.

Effects of Turbo Lag

Turbo lag refers to the delay between the driver’s throttle input and the turbocharger’s delivery of increased boost pressure. It’s perceptible as a pause before the acceleration kicks in after the driver steps on the throttle. This occurs because the turbocharger’s turbine needs to speed up (spool) adequately to produce the required boost pressure, which doesn’t happen instantaneously.

• Spooling: Once spooled, the turbo’s spinning can reach speeds up to 150,000 RPM or higher, illustrating the stresses it undergoes.
• Minimization Strategies: F1 engineers employ various strategies to reduce turbo lag, such as the Motor Generator Unit – Heat (MGU-H) to utilize exhaust gases efficiently, and designing responsive turbocharger systems that can quickly adjust to changes in throttle.

Energy Recovery Systems (ERS)

Formula 1’s Energy Recovery Systems (ERS) are crucial for enhancing efficiency and power. These systems capture energy that would otherwise be wasted and repurpose it, providing a significant boost to the car’s performance.

Harnessing Kinetic Energy – Motor Generator Unit-K

MGU-K (Motor Generator Unit – Kinetic) is responsible for recovering kinetic energy during braking. When the car decelerates, the MGU-K transforms this kinetic energy into electrical energy, which is then stored for later use. This stored energy can be deployed to provide additional power to the crankshaft during acceleration, effectively functioning as an electric motor to aid the internal combustion engine.

• Energy Recovered: Kinetic energy during deceleration
• Function: Transforms into electrical energy
• Use: Additional power when accelerating

Heat Energy Conversion – Motor Generator Unit-H

MGU-H (Motor Generator Unit – Heat) works to convert heat energy from the engine’s exhaust gases. The energy harnessed by the MGU-H is used to either power the MGU-K or to spin the turbocharger to reduce turbo lag, thereby improving engine responsiveness. The process involves capturing the heat produced during combustion, which would typically be lost, and transforming it into electrical energy.

• Energy Recovered: Heat energy from exhaust gases
• Function: Powers MGU-K or assists the turbocharger
• Use: Reduced turbo lag, enhanced responsiveness

Fuel Flow and Regulation

Controlling fuel flow is critical for Formula 1 engines to meet performance and regulatory requirements set by the FIA.

Fuel Flow Metering

The fuel flow meter is an essential component in a Formula 1 car that precisely measures the amount of fuel injected into the combustion chamber. Regulations specify that teams must use a homologated fuel flow meter provided by an FIA-approved manufacturer. This device ensures that the fuel delivery complies with the preset limits and that all teams have a level playing field.

Formula 1 Fuel Flow Limits

The FIA introduced stringent fuel flow limits to regulate the maximum amount of fuel that can be used during a race and maintain a balance between performance, safety, and sustainability. The fuel flow limit is typically set at a maximum rate of 100 kilograms per hour. Compliance with these fuel flow rates is monitored in real-time by the FIA to guarantee that no team exceeds the permitted limits during the race.

Hybrid Technology Integration

Formula 1 has significantly evolved with the integration of hybrid technology, blending internal combustion engines (ICE) with sophisticated electric systems to enhance performance and efficiency.

Combining ICE and Electric Systems

The hybrid systems in Formula 1 consist of an ICE and an electric power unit. The ICE traditionally utilizes a turbocharged V6 engine to provide the primary source of propulsion. In parallel, the electric power unit capitalizes on additional energy sources. This electric power is harvested during braking or exhaust flow and then stored for subsequent use.

Energy Storage and Deployment

F1 hybrid systems store electric energy in an energy store, typically using advanced li-ion cell technology. This allows stored energy to be rapidly deployed, giving drivers an extra boost of power on-demand. This boost is carefully managed to provide strategic advantages during overtaking or defending positions on the track. The deployment is regulated to ensure consistency and fairness in the competition.

Electrical Energy Utilization

In Formula 1, electrical energy plays a critical role in boosting the power unit’s performance through sophisticated energy recovery and repurposing mechanisms.

Role of Energy Store

The Energy Store (ES), a component of the F1 power unit, is responsible for storing and supplying electrical energy. The ES can be likened to a high-tech battery system that efficiently manages the energy harvested during different phases of the race. This unit is not only crucial for energy storage but also for maintaining the balance and delivery of power when the car transitions between braking and accelerating.

• Storage Capacity: An ES has limited capacity, making its management during the race essential.
• Durability: Each driver is allocated a limited number of ES units for a season, underscoring the importance of reliability.

Electric Motor and Energy Repurposing

The Motor Generator Unit – Kinetic (MGU-K) serves as the pivotal electric motor that assists in energy repurposing. When a Formula 1 car brakes, the MGU-K acts as a generator by converting the kinetic energy usually lost as heat into electrical energy. This electrical power is then either directly supplied to the drivetrain for an instant power boost or stored in the ES for later use.

• Direct Power Contribution: Electric power from the MGU-K provides an immediate additional boost, increasing the car’s speed on demand.
• Strategic Management: Teams meticulously manage the repurposing of energy to gain a tactical advantage on the track.

Cooling Systems and Thermal Management

Formula 1 engines, with their high power output, generate substantial heat, necessitating advanced cooling systems for optimal performance and reliability. Effective thermal management is vital to maintain engine efficiency and prevent damage through overheating.

Importance of Engine Cooling

The engine is the heart of a Formula 1 car, and managing the heat it generates is critical for several reasons. Firstly, overheating can lead to engine failure, which can end a race prematurely. Secondly, high temperatures can reduce the efficiency of the engine and its power output. Constant exposure to heat can degrade various components, leading to a decline in performance over time.

• Prevents Engine Failure
  • Ensures the integrity and longevity of engine components
  • Reduces the risk of sudden breakdowns during races
• Maintains Efficiency
  • Preserves optimal engine performance
  • Enables sustained power delivery from the internal combustion engine (ICE)

Cooling Solutions for High Performance

F1 teams employ various cooling solutions to manage the thermal dynamics of their engines. These solutions are critical in striking a balance between performance and reliability. Given that a modern F1 ICE reaches high temperatures, almost half as hot as the surface of the sun in the combustion chamber, adequate cooling is vital.

• Air Cooling
  • Channels airflow through critical areas
  • Utilizes aerodynamically designed inlets and outlets
• Liquid Cooling
  • Employs coolants that circulate through the engine block and heads
  • Transfers heat to the radiators, where it is dispersed
• Exhaust Systems
  • Optimizes the flow of hot exhaust gases away from the engine
  • Includes advanced materials to withstand extreme temperatures

The hybrid systems, combining the ICE with electrical components, add complexity to the F1 car cooling demands. Teams fine-tune the balance: too much cooling adds weight and increases aerodynamic drag, while too little risks overheating and part failure.

Monitoring and Control

In Formula 1, the internal combustion engine (ICE) performance is heavily dependent on precise monitoring and controlled management systems. These systems work in unison to maintain performance, reliability and conform to regulations, particularly concerning fuel flow rates.

Role of Control Electronics

Control electronics play a pivotal role in managing the engine and other components of the power unit. These specialized systems control the fuel injection, ignition timing, and turbocharger operation for optimal performance. Engine manufacturers implement sophisticated software within these electronics to regulate processes and adapt to the demands of the race.

• Fuel Flow: Governed by control electronics to adhere to FIA’s limitations.
• Turbocharger: Adjustments made in real-time to manage air intake and efficiency.

Data Acquisition and Performance Tuning

Data acquisition systems are essential for collecting detailed information on the engine’s operation. Teams analyze this data to make informed decisions on performance tuning for different track conditions.

• Engine Mapping: Adjusts power delivery and fuel consumption.
• Performance Tuning:
  • Power Units: Tuned for maximum output while maintaining reliability.
  • Fuel Consumption: Strategically managed for race longevity and power.

Evolution of Engine Regulations

The regulations governing the power units in Formula 1 have seen significant transformations, directly influencing the designs and capabilities of Formula 1 race cars over the decades.

Historical Changes in Engine Rules

Historically, Formula 1 has cycled through various engine formats, each dictated by changing rules from the Federation Internationale de l’Automobile (FIA). In the early days, there was considerable freedom, but in the quest for safety and parity, regulations tightened. In order to balance performance and maintain competition, engine rules have consistently evolved.

• 1950s to 1960s: The era started with 4.5-liter naturally aspirated engines which later were constrained to 1.5 liters.
• 1970s to 1980s: The introduction of turbocharged engines saw power outputs soar, leading to a 1.5-liter limit for turbos in 1977.
• 1990s: Rules mandated 3.5-liter naturally aspirated and then 3.0-liter engines by the mid-90s.
• 2000s: Engine sizes were further reduced to 2.4 liters V8, limiting the number of revs and engine changes over a season to ensure durability.
• 2014 to present: The current regulations require 1.6-liter V6 turbocharged engines equipped with Energy Recovery Systems (ERS), marking the hybrid era.

Impact of Regulations on Engine Design

Engine manufacturers have continuously adjusted their designs to adhere to the FIA’s regulations, which aim to ensure both competitiveness and safety within Formula 1. Regulatory changes have had a substantial impact on engine design, with manufacturers such as Ferrari, Mercedes, Renault, and Honda reconfiguring their power units for optimal performance within set parameters.

• Fuel Efficiency: New rules often promote greater fuel efficiency, like the current hybrid engines with fuel flow limits.
• Environmental Concerns: Regulations steer designs towards reduced environmental impacts, encouraging hybrid technologies and lower emissions.
• Performance Restrictions: Measures such as rev limits and fuel flow restrictions limit peak power outputs, requiring clever engineering solutions.
• Reliability Mandates: With penalties for excessive engine part replacements, manufacturers focus on the longevity of each component, alongside their performance.
