What Is Graining In Formula 1? How Cold Tyres Cost Leclerc at Imola and Hamilton in Turkey
- Graining in Formula 1 is a surface-level tyre issue where cold rubber tears and reattaches unevenly, creating a rough texture that reduces grip. It cost Charles Leclerc the lead at the 2022 Imola Sprint and triggered Lewis Hamilton’s infamous “massive graining, we shouldn’t have come in” radio call in Turkey 2021.
- Pirelli data from the 2023 Las Vegas Grand Prix showed front tyres cooling by 35 to 40 degrees on the long straights alone, making graining almost unavoidable in the opening laps of every stint at cold-weather circuits.
- Graining can sometimes clear itself mid-stint as the damaged rubber wears away, but whether a driver can “drive through” it depends on tyre temperature, track grip, compound choice, and how aggressively they load the tyres.
Graining in Formula 1 Explained
Graining in Formula 1 is a form of surface-level tyre degradation where small particles of rubber tear away from the tread and then reattach unevenly, creating a rough, textured surface that disrupts the contact patch between tyre and track. The result is reduced grip, higher lap times, and a car that becomes harder to balance through corners. It is distinct from blistering, which originates inside the tyre compound due to overheating. Graining is a cold-tyre problem. It happens when the rubber is too stiff to conform to the asphalt, causing the surface to slide instead of grip, tearing small fragments loose in the process.
That description can sound abstract until you see what it does to a race. At the 2022 Imola Sprint, Charles Leclerc led from the start and looked comfortable until the closing laps, when front tyre graining destroyed his pace. Max Verstappen closed the gap, got within DRS range, and passed for the win. Leclerc was direct about what happened afterwards, saying “What made the difference at the end is the graining phase that I went through at the end of the race and if we managed to cure that for tomorrow, I’m pretty sure that we’re in the fight for the win.” Verstappen confirmed the diagnosis from his side: “Charles was definitely struggling more with the graining.” A race that Leclerc controlled for 19 of 21 laps slipped away because his front tyres lost their surface integrity in cool conditions.
Why Cold Tyres Grain: The Mechanics Behind It
Graining occurs when the tyre surface slides across the track instead of rolling cleanly. Every F1 tyre has an optimal operating window, a temperature range where the rubber is pliable enough to deform into the asphalt’s micro-texture and generate maximum friction. When the tyre sits below that window, the compound is too stiff. Instead of gripping, it shears. Small pieces of rubber peel away from the tread, roll along the contact patch, and reattach in a scattered, uneven layer.
The result looks rough and patchy on inspection, sometimes resembling wavy ridges or dark bands across the tread surface. Drivers feel it as a sudden loss of front or rear grip, depending on which axle is affected. The front tyres are more commonly hit because they bear the highest lateral loads during cornering and are more exposed to airflow cooling.
Pirelli’s former sporting director Mario Isola explained the temperature dynamics clearly ahead of the 2023 Las Vegas Grand Prix. He noted that “due to the cold, the expected ambient temperature and the long straights, we will probably measure a difference between the surface temperature, which cools down, and the temperature inside, and that could lead to some graining.” Pirelli’s data from that weekend confirmed the severity: front tyres were cooling by 35 to 40 degrees on the long straights, with rear tyres losing 20 to 25 degrees. That temperature drop was far greater than the roughly 30 degrees typically seen at Baku, another street circuit with long flat-out sections. Every time a car exited a corner with the tyres in their working range and hit a straight, the surface temperature plummeted, priming the rubber for graining at the next braking zone.
Imola 2022: How Graining Decided the Leclerc vs Verstappen Sprint
The 2022 Emilia Romagna Grand Prix Sprint race at Imola is one of the clearest examples of graining deciding an on-track battle between two championship contenders. Leclerc started from pole and led comfortably, but the cool conditions at Imola were punishing front tyres. Both Red Bull and Ferrari had to manage front tyre graining, but the two cars responded differently to the conditions. Ferrari’s car tended to bring its tyres up to temperature quickly, while the Red Bull was slower to generate heat, a characteristic that initially hurt Verstappen but helped him later as the stint progressed.
Leclerc’s issues arrived towards the end of the 21-lap race. His front tyres entered a graining phase and the car developed understeer, the front end sliding wide instead of turning in cleanly. Verstappen, whose tyres had stabilised, closed the gap rapidly and made the pass. Verstappen himself acknowledged after the sprint that his team needed to address their own graining, saying “we need to fix the graining most of all. It felt like we damaged the tyres a bit more, especially the front right for some reason.” The difference was that Red Bull’s graining phase came and went earlier, while Ferrari’s hit at the worst possible moment.
The root cause was linked to understeer in the slow corners. On a cold track, the front tyres start to slip. That slipping generates surface heat rapidly, but it is destructive heat. The rubber tears rather than grips, and the graining cycle accelerates. Cars that generate understeer in low-speed corners are particularly vulnerable because the front tyres spend more time sliding than cars with a more neutral balance.
Turkey 2021: Hamilton’s Late Stop and the Graining Trap
The 2021 Turkish Grand Prix produced one of the most instructive examples of graining affecting race strategy. Lewis Hamilton was running on intermediate tyres on a drying track when Mercedes brought him in for a fresh set with just eight laps remaining. The new intermediates immediately entered a graining phase. The surface rubber was cold, the track was transitioning from wet to dry, and the tyres could not reach their working temperature quickly enough. Hamilton’s pace dropped sharply.
His radio message captured the frustration in real time: “Massive graining. We shouldn’t have come in.” The problem was specific to the timing of the stop. Most other drivers had pitted much earlier in the race, which meant they had already weathered the graining phase when their fresh tyres were cold. By the time Hamilton stopped, he had no laps left to drive through the graining and recover performance. He lost positions and finished fifth, a result that had direct implications for the 2021 championship battle with Verstappen.
The Turkey example illustrates a critical point about graining that the basic definition misses. It is not just a tyre problem. It is a strategy problem. The timing of a pit stop, the state of the track surface, and how many laps remain all determine whether graining is a brief phase to endure or a race-ending loss of pace.
Las Vegas 2023: When an Entire Circuit Promotes Graining
Some circuits create conditions where graining is almost guaranteed, and the 2023 Las Vegas Grand Prix was the most extreme example in recent seasons. The race ran at night, with ambient temperatures dropping to around 12 degrees Celsius. The track featured three long straights that drained heat from the tyres, followed by slow-to-medium-speed corners that demanded lateral grip the cold rubber could not provide.
Pirelli brought their three softest compounds (C3, C4, and C5) to compensate for the cold, but even that adjustment had limits. Isola noted that “only the hard tyre is somewhat consistent, but it takes too long to reach operating temperature.” It was a catch-22: softer compounds could generate heat more quickly but were more susceptible to graining once the surface cooled on the straights. Harder compounds resisted graining but took so long to warm up that they offered no grip in the opening laps of a stint.
The result was that every team had to manage graining as a central part of their race strategy rather than treating it as an occasional nuisance. Drivers who pushed too hard in the opening laps grained their front tyres and lost time. Drivers who backed off to protect the tyres lost track position. The teams that found the best balance between aggression and management in those opening laps gained the largest strategic advantage.
Can Graining Fix Itself? The “Driving Through” Phase
One of the characteristics that makes graining different from other forms of tyre degradation is that it can sometimes resolve itself without a pit stop. As the tyre continues to run under load, the rough, grained outer layer gradually wears away, exposing clean rubber underneath. When this happens, grip levels recover and lap times improve. Teams refer to this as “driving through” the graining phase, and it is a genuine strategic option when conditions allow it.
Whether a driver can successfully drive through graining depends on several factors working together. The tyre needs to reach and hold its operating temperature, which is easier on circuits with high-energy corner sequences and harder on tracks with long straights that cool the surface. The track itself matters too. A rubbered-in circuit with a layer of grip on the racing line helps clean up the tyre more quickly than a green or recently resurfaced surface. Driver input plays a role as well. Smooth, progressive steering and throttle application helps the damaged layer wear away evenly, while aggressive inputs can make the graining worse by tearing more rubber loose.
Compound choice also affects recovery. Some Pirelli compounds are more forgiving and shed their grained surface more readily. Others hold onto the damaged layer and never fully recover, forcing an unplanned pit stop or a change in strategy. This is one reason teams pay close attention to tyre behaviour during Friday practice. The data from those sessions tells engineers how quickly each compound grains and, crucially, whether it recovers or degrades further.
Graining vs Blistering: Two Opposite Problems
Graining and blistering are both forms of tyre degradation, but they sit at opposite ends of the temperature spectrum and behave very differently on track.
Graining is a cold-surface problem. It happens when the tyre slides against the track because the rubber is too stiff to grip, tearing small fragments that reattach unevenly. Blistering is a heat problem. It occurs when excessive temperature builds up inside the tyre compound, creating pockets of gas beneath the surface that eventually push outward and rupture, leaving visible bubbles or craters in the tread. Graining affects the outer surface and can sometimes clear itself. Blistering originates within the rubber and usually requires a tyre change.
The practical difference for teams is that graining tends to appear early in a stint when the tyres are cold, while blistering develops later when heat has accumulated over many laps. A car that suffers graining in the opening laps may recover as the rubber warms up. A car that blisters will only get worse. The two problems also demand opposite setup responses. Reducing graining often means generating more heat through softer suspension or camber changes, while reducing blistering requires managing temperatures downward.
How Teams and Drivers Manage Graining in 2026
Pirelli’s current-generation tyres for the 2026 regulations were designed with reduced graining as an explicit goal. Testing at Bahrain confirmed that the new compounds show less graining and more controlled overheating compared to their predecessors. But graining has not been eliminated. It remains a factor at cold-weather circuits, on freshly resurfaced tracks, and during early-stint phases where tyres have not reached their operating window, as the 2026 Miami Grand Prix tyre data confirmed.
Teams manage graining through a combination of car setup, driver technique, and strategic timing. On the setup side, adjustments to camber, toe angle, suspension stiffness, and aerodynamic balance can all influence how evenly a tyre loads during cornering. A car that generates understeer puts extra stress on the front tyres, making them more likely to slide and grain. Dialling out understeer through mechanical or aero changes reduces that risk.
Drivers contribute by managing their inputs during the vulnerable early laps of a stint. Smooth turn-in, progressive throttle application, and avoiding sudden braking on cold tyres all help the rubber reach its working temperature without triggering the shearing that causes graining. Formation laps and out-laps include deliberate weaving and braking to build heat before the tyres are pushed hard.
Compound selection remains the most consequential strategic decision. A softer compound warms up faster but grains more readily if the track cools it between corners. A harder compound resists graining but takes longer to reach performance, potentially costing time in the opening laps. Teams use simulation data and Friday practice telemetry to decide which compound offers the best trade-off for the specific conditions of each race weekend.
Analysis for this article was provided by the 1Bet review and analysis team, where high-performance strategy and real-time decision-making are central to understanding success, on the track and in the world of sports betting.
Want more F1Chronicle.com coverage? Add us as a preferred source on Google to your favourites list for the best F1 news and analysis on the internet.
From F1 news to tech, history to opinions, F1 Chronicle has a free Substack. To deliver the stories you want straight to your inbox, click here.
For more F1 news and videos, follow us on Microsoft Start.
New to Formula 1? Check out our Glossary of F1 Terms, and our Beginners Guide to Formula 1 to fast-track your F1 knowledge.
Formula 1 Tyre Graining FAQs
What does graining look like on an F1 tyre?

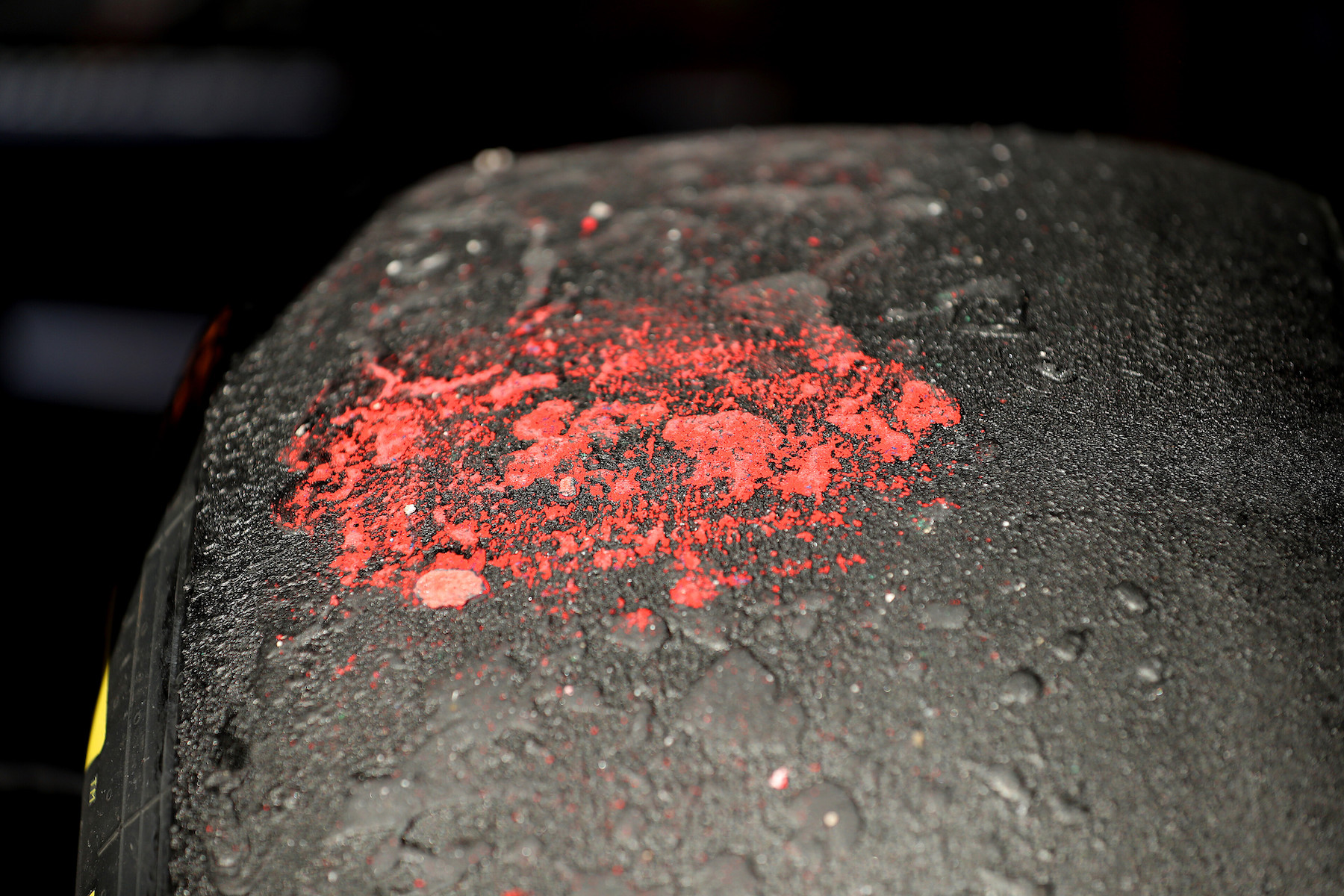

Graining appears as a rough, uneven texture across the tyre’s contact surface. Instead of a smooth, worn tread, the surface looks torn or coated in scattered rubber fragments. It can resemble wavy ridges or dark, patchy bands. On television, it is most visible on slow-motion replays showing the front tyres after heavy cornering loads. Engineers also identify it through post-run inspections and grip-loss data patterns.
Can graining fix itself during an F1 race?
Yes. If the tyre reaches and holds its operating temperature, the grained outer layer can wear away over several laps, exposing clean rubber underneath and restoring grip. This is known as “driving through” the graining phase. It worked for Verstappen’s Red Bull at the 2022 Imola Sprint, where his graining cleared early enough for him to attack Leclerc. But it failed for Hamilton at Turkey 2021, where a late pit stop left too few laps for the fresh intermediates to clean up.
Which F1 circuits are most prone to graining?
Circuits with cold ambient temperatures, long straights that cool the tyre surface, and slow-to-medium-speed corners that demand lateral grip in the cold are most affected. Las Vegas is the most extreme recent example, with Pirelli recording 35 to 40 degrees of front tyre cooling on the straights alone. Imola in cool spring conditions, early-season races at Bahrain during evening sessions, and street circuits like Baku and Monaco also regularly produce graining. Freshly resurfaced tracks like Monza in 2024 are vulnerable too, as the new asphalt offers high adhesion but low initial grip.
What is the difference between graining and blistering in F1?
Graining is caused by cold tyres sliding on the track, tearing surface rubber that reattaches unevenly. Blistering is caused by internal overheating, where gas pockets form inside the compound and push outward, leaving visible bubbles on the tread. Graining affects the outer surface and can clear itself mid-stint. Blistering originates within the rubber and usually requires a pit stop. The two problems demand opposite management approaches: graining calls for more heat, blistering calls for less.
Sources
- Emilia Romagna GP: Max Verstappen wins Imola Sprint after late pass on Charles Leclerc, Sky Sports
- Turkish GP: Valtteri Bottas takes superb win as Hamilton rues late pit stop, Sky Sports
- Pirelli warn of serious tyre issues at 2023 Las Vegas GP, ESPN
