How Does The Formula 1 Chassis Withstand Crashes?

The Formula 1 chassis withstands crashes through a carbon-fibre monocoque, energy-absorbing crash structures, and an aerospace-grade titanium halo, engineered to endure impacts up to 250 kN (25 tonnes) while safeguarding the driver at speeds exceeding 300 kph. Per FIA 2025 standards, this 798 kg chassis (including driver) dissipates crash forces via a crumple nose, side impact tubes, and a rigid survival cell, leveraging carbon fibre’s 200 GPa tensile strength and controlled deformation.

With analysis from Vodds, we detail how these components ensure driver safety in high-speed collisions…

The Heart of Safety: The Survival Cell

At the center of every Formula 1 car is the survival cell, a tough shell made of carbon fibre that surrounds the driver. This structure, often called a monocoque because it’s a single, seamless piece, weighs between 80 and 90 kilograms—light yet incredibly strong. It’s built by layering sheets of carbon fibre, a material five times stronger than steel, and baking them under high heat and pressure to create a rigid frame. This frame has to protect the driver, the fuel tank (which holds up to 110 kilograms of fuel), and the seat from the violent forces of a crash.

The FIA tests this cell to ensure it can withstand enormous impacts—think of a sudden stop from 300 kilometers per hour. It’s designed to resist forces that mimic a heavy object, like a 20-kilogram wheel, slamming into it at high speed. To pass these tests, the cell must barely flex under pressure and remain intact. Extra layers of protective materials, such as Kevlar to stop punctures and Nomex to guard against fire, add further defense. These features ensure the survival cell acts like an unbreakable cocoon, keeping the driver safe no matter how fierce the crash.

The Front Line: Absorbing Impact with the Nose

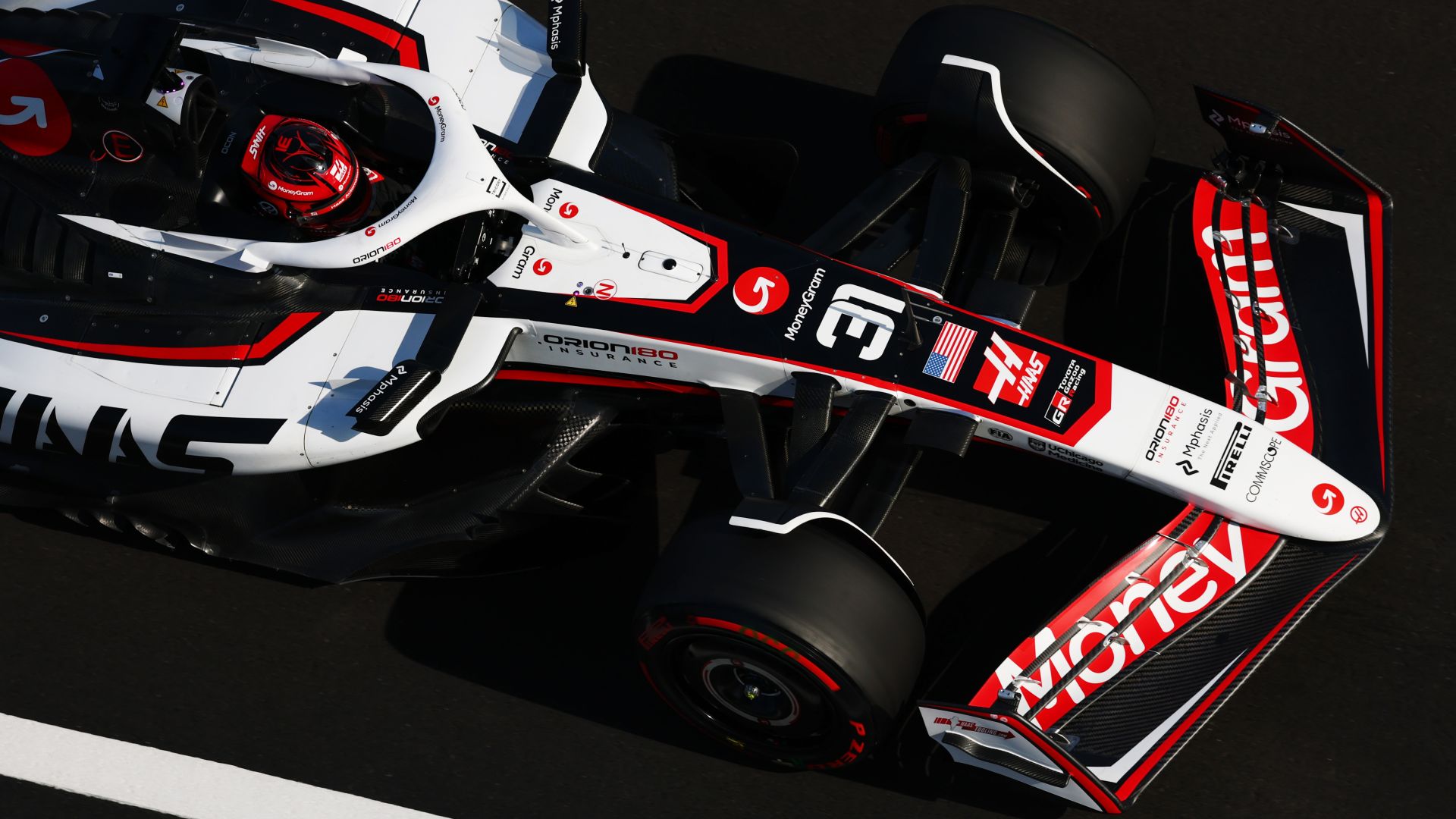

The front of an F1 car features a long, pointed nose made of carbon fibre, engineered to crumple in a crash. Weighing around 10 to 12 kilograms, this nose is the first line of defense when the car hits something head-on, like a barrier or another vehicle. It’s designed to collapse in a controlled way, soaking up energy that would otherwise jolt the driver. The FIA requires this part to handle significant force, testing it by simulating a high-speed impact into a solid obstacle.

Inside, the nose has a honeycomb-like structure that crushes gradually, slowing the car down over a fraction of a second rather than instantly. This process reduces the harshness of the crash, cutting the forces felt by the driver by about half. After a collision, the nose often breaks away cleanly, leaving the survival cell untouched. This clever design sacrifices the front end to protect what’s behind it, a trade-off that prioritizes safety over all else.

Side Defense: Tubes and Panels

Crashes don’t always happen head-on—sometimes cars collide sideways, especially during tight overtakes or pile-ups. To handle these side impacts, the F1 chassis includes special carbon-fibre tubes and panels along its flanks. Two tubes, each about 60 centimeters long, are positioned at different heights beside the cockpit. These are built to absorb energy by crumpling when struck, reducing the force that reaches the driver.

Alongside the tubes, thin carbon-fibre panels reinforce the survival cell’s sides, adding an extra layer of protection. The FIA tests these components rigorously, ensuring they can take a heavy sideways blow without failing. Together, the tubes and panels work to shield the driver’s torso and legs, soaking up crash energy so the survival cell stays solid. This multi-layered approach has been a standard safety feature for over a decade, proving its worth in countless incidents.

Above the Cockpit: The Halo’s Role

Sitting above the driver’s head is the halo, a curved bar made of aerospace-grade titanium—a metal known for its strength and lightness. Weighing just 7 kilograms, it’s bolted to the chassis and designed to stop objects, like a flying wheel or debris, from hitting the driver during a crash. Introduced in 2018, the halo can withstand a force equivalent to over 12 tonnes pressing down on it, a testament to its toughness.

The FIA tests the halo by dropping heavy weights onto it, ensuring it holds firm without bending or breaking. In a rollover or when debris flies, it acts like a shield, deflecting danger away from the cockpit. While it slightly affects the car’s aerodynamics, its lifesaving impact outweighs any small performance cost. Since its debut, the halo has been credited with protecting drivers in numerous crashes, making it an essential part of F1 safety.

Rear Guard: Protecting the Back End

The rear of the chassis features a carbon-fibre structure that guards against impacts from behind, such as when one car rams another on a fast straight. This part, weighing about 8 kilograms, extends from the back of the survival cell and is built to crumple under force, much like the front nose. It’s tested to handle significant rear-end collisions, absorbing energy to lessen the shock transmitted to the driver and the car’s gearbox.

When a crash occurs, this rear structure collapses in a controlled manner, slowing the impact’s effects over a brief moment. It’s designed to break away after absorbing the hit, keeping the survival cell and critical components safe. This setup ensures that even in multi-car incidents, the driver remains protected from behind, rounding out the chassis’s all-around defense system.

How It All Comes Together: A Unified Design

The Formula 1 chassis is a masterpiece of engineering, blending lightweight materials with smart design to withstand crashes from every angle. The survival cell forms a rock-solid core, while the front nose, side tubes, and rear structure act as buffers, crumbling to absorb energy. The halo adds a final layer of protection overhead, ensuring no part of the driver is left exposed. Together, these elements can handle forces far beyond what a road car could endure—up to 25 tonnes in some tests—while keeping the driver secure.

This resilience comes from advanced materials like carbon fibre, which is incredibly strong for its weight, and titanium, which is used in the halo for its durability. The FIA’s strict safety rules drive this design, requiring every chassis to pass tough crash tests before it hits the track. These tests simulate the worst-case scenarios—frontal smashes, side collisions, and rollovers—ensuring the car can take a beating and still protect its occupant.

Why It Matters: Safety First

Decades ago, crashes were far more dangerous, with weaker materials and less protection. Today, the chassis is a lifeline, allowing drivers to push limits at 300 kilometers per hour with confidence. It’s not just about surviving a crash—it’s about walking away unharmed, ready to race again. The FIA updates these standards yearly, and by 2025, the chassis reflects decades of lessons learned, balancing speed with survival.

The design isn’t perfect—it’s costly to build and tricky to repair—but it prioritizes driver safety above all. When a car slams into a barrier or spins into another, the chassis takes the hit so the driver doesn’t. This focus explains why F1 has become safer than ever, even as speeds climb and races grow more intense.

Looking Ahead: The Future of Chassis Design

As Formula 1 evolves, so does the chassis. Future rules, like those planned for 2026, aim to make cars lighter—potentially dropping below 798 kilograms—while keeping safety paramount. Advances in materials, such as even stronger carbon composites, could boost resilience further. The halo might see tweaks too, refining its shape without sacrificing strength. Whatever changes come, the chassis will remain the backbone of F1 safety, engineered to handle crashes while letting drivers chase glory.

Formula 1 Chassis FAQs

What chassis do Formula 1 cars use?

Formula 1 cars use a carbon-fibre monocoque chassis, a lightweight, rigid structure weighing 80-90 kg, designed to meet the FIA’s 2025 Technical Regulations (Article 13) with a minimum total car weight of 798 kg including the driver. Constructed from 6-8 layers of pre-impregnated carbon fibre—cured at 135°C under 7 bar pressure—it achieves a tensile strength of 200 GPa, encasing the driver, 110 kg fuel tank, and seat within a 1.8 m-long survival cell. Reinforced with Kevlar linings (1 mm thick) for puncture resistance and Nomex layers for fireproofing against 800°C, this chassis integrates crash structures—front nose, side tubes, and rear extension—absorbing up to 250 kN, ensuring safety and structural integrity across all 24 races on the 2025 calendar.

How much does a Formula 1 chassis cost?

Answer: A Formula 1 chassis costs approximately £500,000 to £1 million to produce, reflecting the high expense of carbon-fibre construction and FIA-mandated safety features for the 2025 season, though exact figures vary by team within the £108 million cost cap (FIA Financial Regulations, Article 3). The monocoque—80-90 kg of 6-8 carbon-fibre layers (200 GPa tensile strength), cured at 135°C under 7 bar—accounts for £300,000-£600,000, driven by material costs (£100/kg for aerospace-grade carbon) and 500 hours of skilled labor (£50/hour). Additional crash structures—front nose (£50,000), side tubes (£30,000 each), rear extension (£40,000)—and a £70,000 titanium halo push totals higher, with R&D (e.g., wind-tunnel testing, £200,000) often excluded from per-unit costs, making it a significant investment for safety and performance.

How many chassis are Formula 1 teams allowed to use?

Formula 1 teams are allowed to use two chassis per driver across the 24-race 2025 season, as stipulated by the FIA Sporting Regulations (Article 23.1), totaling four chassis per team for their two-car entries, though additional spares can be built within the £108 million cost cap. Each chassis—a carbon-fibre monocoque (80-90 kg, 798 kg car minimum)—is homologated pre-season via FIA crash tests (250 kN frontal, 300 kN lateral), with no limit on replacements for damage exceeding 50 kN, provided they’re identical and approved. Teams typically prepare 6-8 chassis annually—two primary, two backups, plus spares.

What are the drawbacks of a monocoque chassis in Formula 1?

A monocoque chassis in Formula 1 faces disadvantages including high production costs, limited repairability, and sensitivity to manufacturing flaws, despite its 200 GPa tensile strength and 80-90 kg lightweight design. Costing £500,000-£1 million each due to 500 hours of labor and £100/kg carbon fibre, it strains the £108 million budget cap compared to steel frames (£50,000). Damage—beyond 50 kN impacts—requires full replacement rather than spot fixes, unlike modular chassis, as the 3-5 mm shell can’t be patched without compromising 250 kN crash resistance. Imperfections like a 0.1 mm resin void, detectable only via ultrasound (0.05 mm accuracy), risk 10% strength loss, demanding rigorous quality control to maintain safety and performance.
